"The 1st IMechE Railway Challenge" - supporting the Team from the Birmingham Centre for Railway Research and Education building a fuel cell hybrid locomotive
The Institution of Mechanical Engineers (IMechE) held their first ever Railway Challenge in June 2012. This event was closely based on the very successful Formula Student which has been run by the IMechE and SAE since 1998. The University of Birmingham was invited to participate in this railway challenge, alongside 3 other institutions with a track record in excellent railway research.
The task was to build a 1:10 scale railway traction unit that fulfils set criteria, and its performance was compared to the competing participants’ designs during testing on the Stapleford miniature railway in Leicestershire in June 2012. The three main challenges were; ride comfort, tractive effort, and regenerative braking capabilities. Students from different Schools with various specialist skills were involved in design, construction, testing, and operation of the locomotive.
Students and young researchers from Electronic, Electrical and Computer Engineering, Civil Engineering, Chemical Engineering, Metallurgy and Materials, and Mechanical Engineering, were involved in the UoB team. The project allowed students to apply their theoretical knowledge in practice, and it strengthened the students’ transferable skills, including their team work and communication skills.
The University of Birmingham is at the forefront of railway traction research, and the locomotive that was constructed received huge media interest. Following the successful trials the University released a press release of the trial which focused on the novel aspects of the overall design:
“The locomotive is a hybrid design, combining a hydrogen fuel cell and lead acid batteries similar to the ones used in cars. The fuel cell is used both to power the permanent magnet electric motors and to charge the batteries, with the batteries helping to meet the peak power demands when accelerating under load.
Hydrogen provides a clean source of energy and it offers a considerable extension in range in comparison to battery only operation. Over 5 000 litres of hydrogen are stored in a solid state metal hydride tank at relatively low pressure, with the system typically operating at just 5 bar. This was achieved by using one of the ten advanced hydrogen storage units successfully employed on the University’s hydrogen powered canal boat, the Ross Barlow.
This amount of hydrogen would enable the locomotive to haul a 400 kg load up over 2 700 m, twice the height of Ben Nevis, and two additional tanks can be easily fitted to further extend its range.
The locomotive also features regenerative braking to capture, store and re-use braking energy, as well as adjustable air suspension and a highly advanced touchscreen remote control that operates over a Wi-Fi link.”
The press release generated a great deal of media interest. The highlights of these include being featured in the following publications; New Scientist Blog, Huffington Post, The Engineer and Railway Gazette International.
Dr Hillmansen, the project proposer was also interviewed on the BBC’s West Midlands Radio Station. News of the loco was also picked up internationally and was featured in USA, Russian, Portuguese, Italian and Indonesian news sites.
The testing of the locomotive coincided with the 7th International Hydrail Conference which was held in the University of Birmingham in July 2012. This attached an international audience who, amongst receiving papers from leading hydrogen experts also had an opportunity to view the locomotive.
The interest in the locomotive was incredible and we soon realised that we should give the loco a name, as is traditional for locomotives. The loco was named “The Hydrogen Pioneer” by the team.
Since the challenge, The Hydrogen Pioneer has been busy. It was invited to Germany to a demonstration of hydrogen fuel cell vehicles and it was filmed for a Germany TV station. It has also been invited to form part of the National Science Museum Science Week in 2013 where it will be used to demonstrate the options for zero carbon fuel for future autonomous transport. It was also recently filmed by the Department for Transport to provide promotional footage for the Government’s Railway Technical Strategy – which will be used to define the priorities for the technical development of the UK railway over the next 30 years.
Stephen Kent the team leader commented:
“I was ‘volunteered’ to be the Project Manager for the University of Birmingham team entering the inaugural IMechE challenge back in January 2012. While it sounded like an worthwhile project, it was when one of the team suggested constructing a hydrogen fuel cell based design that things really started to become interesting. The technology is fascinating, and appears to be point where it can usefully be applied to the UK rail network, as demonstrated by our locomotive, the Hydrogen Pioneer. I am convinced of the benefits and usability of this technology, and my involvement with the Railway Challenge has convinced me to start a part time PhD in the area.
As technical lead for mechanical design of the locomotive, the success of the Hydrogen Pioneer has also given a boost to my confidence and abilities in developing both concept and detail mechanical designs. This will benefit future project work within the Railway Centre, which frequently requires significant mechanical input.
The support received from the Circles of Influence Alumni was pivotal in enabling the Hydrogen Pioneer to exist. I am grateful for the opportunities it has given me personally, and also for the spot light it has shone on the potential this technology has for the UK’s railways.”

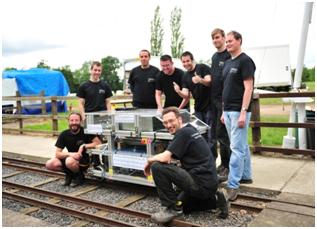

Photos taken by Charles Watson:
