Numerical modelling of turbulent flow, sediment transport and flood routing by the finite element method
PhD thesis by Abril, J.B., 1997

Mainly numerical work, based on the Shiono and Knight Method (SKM), applied to overbank flow.

Abstract

Several numerical and hydraulic aspects of river modelling are studied in two parts.

Part I deals with the investigation of the flow characteristics in the lateral and vertical directions. The concepts and assumptions adopted in a theoretical model for the description of turbulent flow are addressed. Certain experimentally derived coefficients required by the model are investigated using the data from the UK SERC-FCF. It is followed by the implementation of a finite element computer model called RFMFEM to obtain a solution to the depth averaged momentum equation. The model can describe the lateral distributions of depth mean velocity and Reynolds shear stress, and the local boundary shear stress in channels of any cross sectional shape. Benchmarking and validation of the model is attained by comparisons with an analytical solution and experimental data. Through the lateral integration of the flow to give the discharge, the model may also predict the stage-discharge relationship. Likewise it is utilised in sediment transport analysis in open channels.

Part II addresses the study of river engineering related to the unsteady changes in the longitudinal direction. Hence the theory of flood routing is briefly discussed. Simplified models based on the diffusion analogy are adopted for one-dimensional flood routing analysis. The finite element method is applied in the formulation of a variable parameter diffusion model called RFRFEM for the solution to the nonlinear convection-diffusion equation. A detailed study of the routing parameters is performed based on the prediction of the rating curve. Model validation is attained through comparisons with both analytical solutions for simplified cases and systematic series of flood routing benchmark tests for inbank flow. It ultimately deals with the joint application of the turbulence and routing models to analyse overbank flood routing in natural rivers.

Images

Click on the filenames below (the text displayed beneath each thumbnail) to display the revelant image.

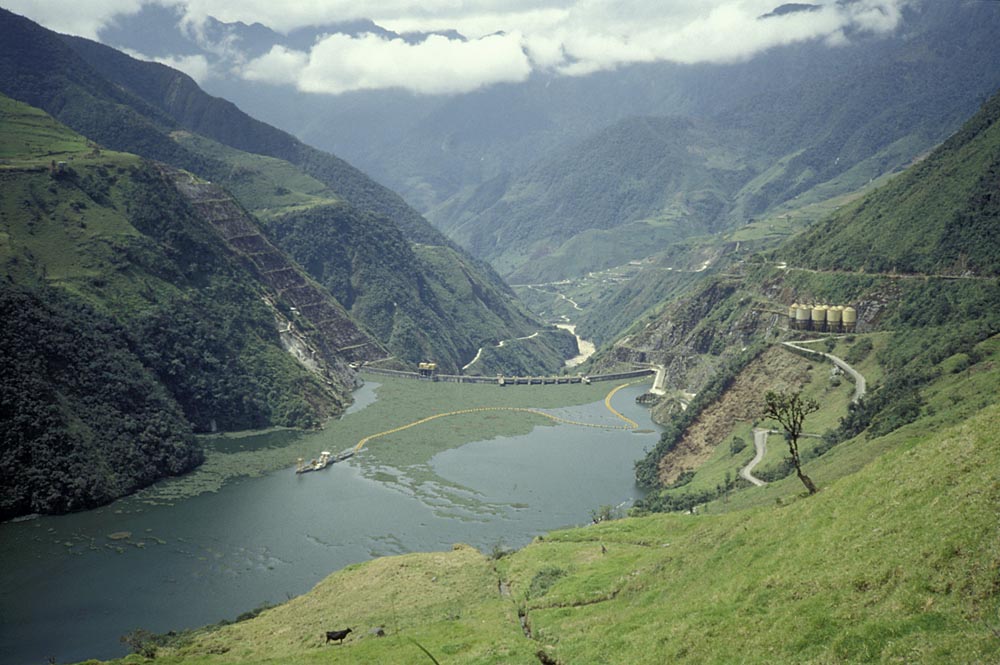

ecu04

ecu04

Uploaded
Dec 12, 2011

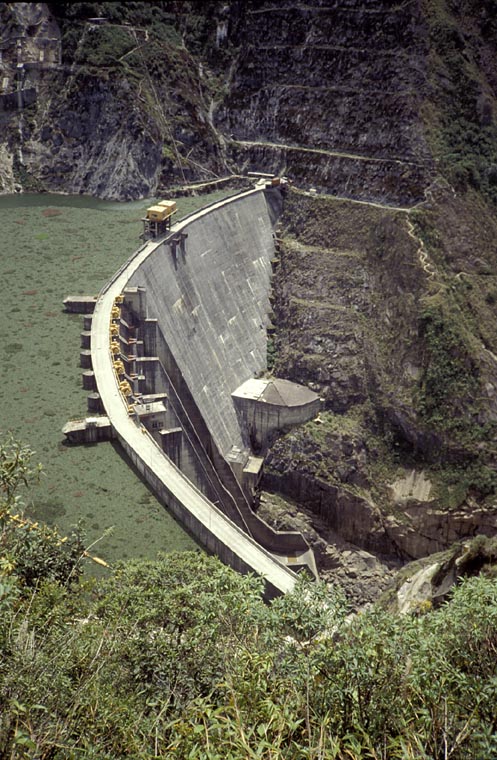

ecu05

ecu05

Uploaded
Dec 12, 2011
ecu06

ecu06

Uploaded
Dec 12, 2011
ecu07

ecu07

Uploaded
Dec 12, 2011
ecu08

ecu08

Uploaded
Dec 12, 2011

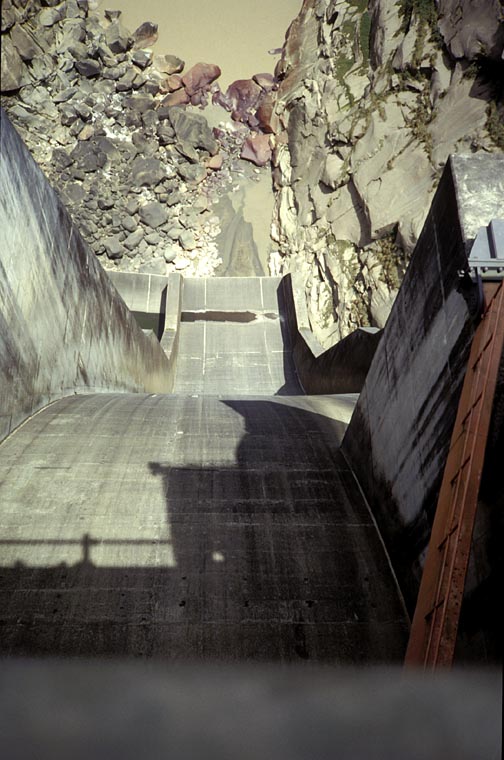

ecu09

ecu09

Uploaded
Dec 12, 2011

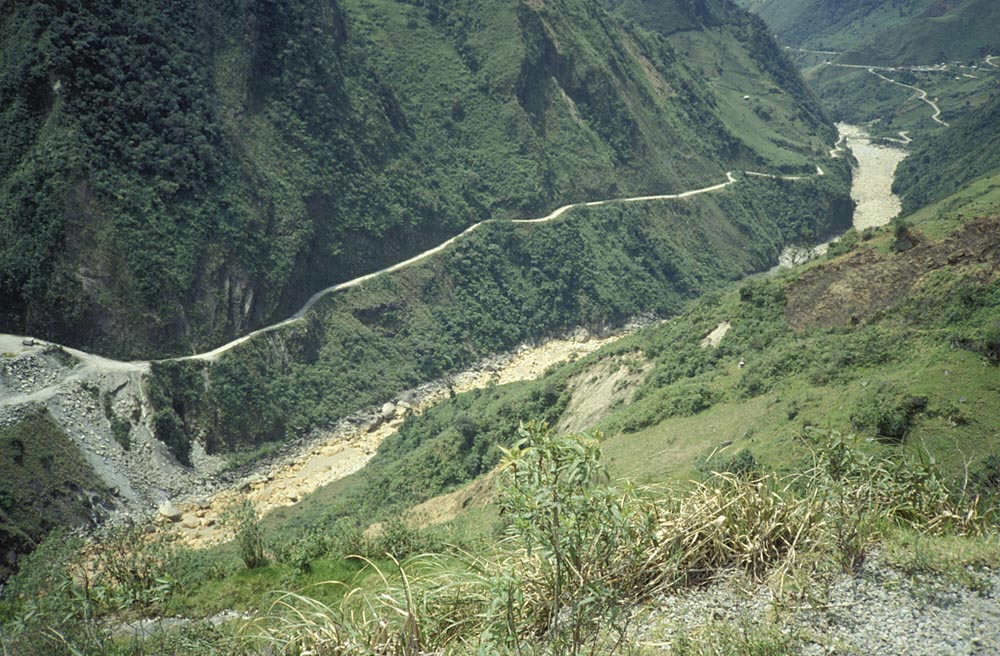

ecu10

ecu10

Uploaded
Dec 12, 2011
ecu11

ecu11

Uploaded
Dec 12, 2011

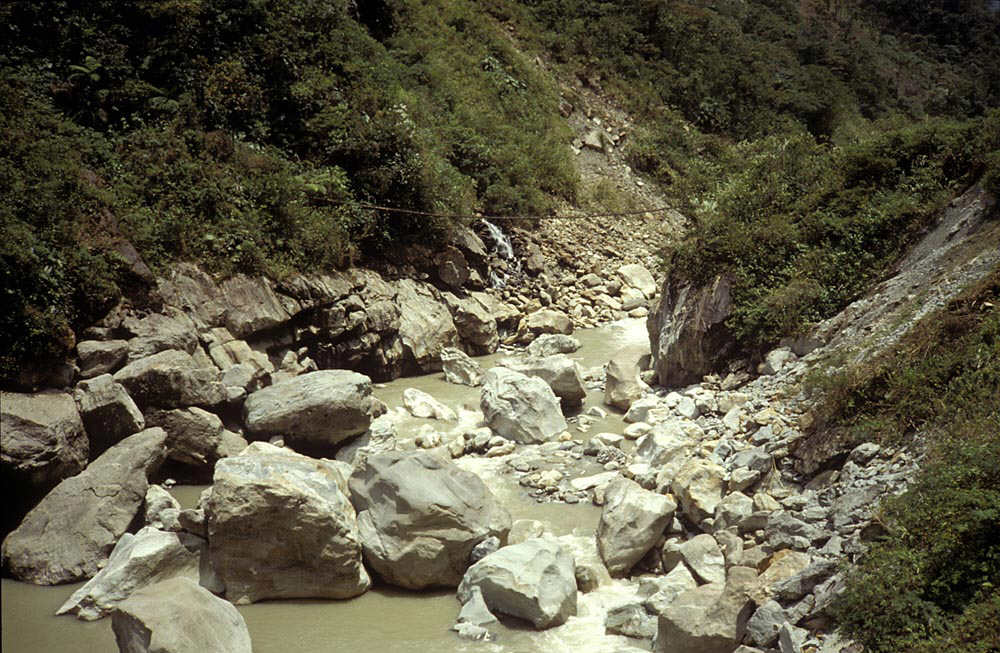

ecu12

ecu12

Uploaded
Dec 12, 2011
ecu13

ecu13

Uploaded
Dec 12, 2011
ecu14

ecu14

Uploaded
Dec 12, 2011

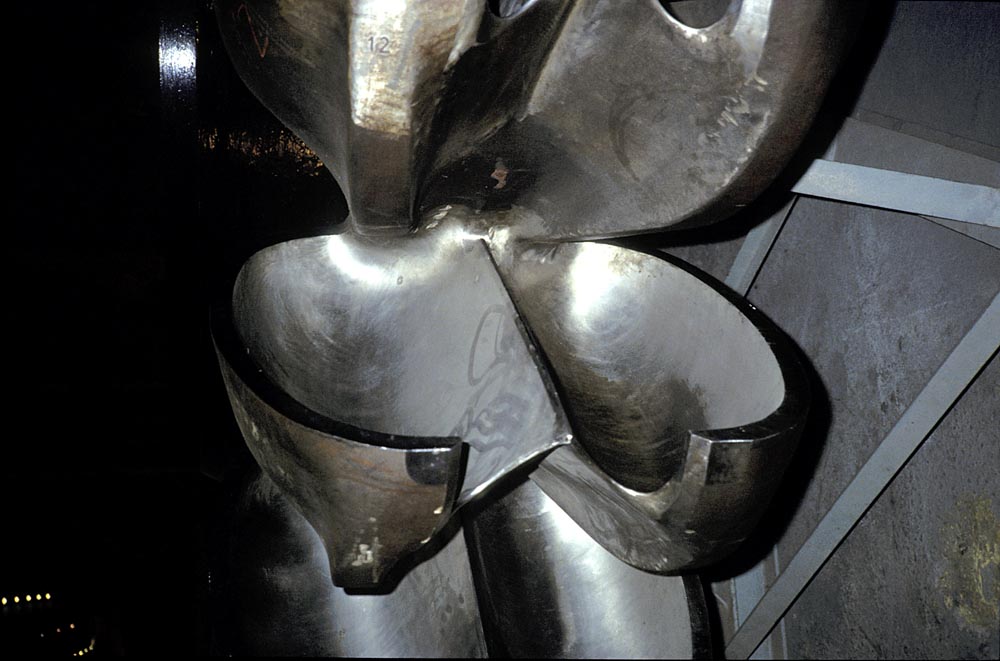

ecu15

ecu15

Uploaded
Dec 12, 2011
ecu16

ecu16

Uploaded
Dec 12, 2011
ecu17

ecu17

Uploaded
Dec 12, 2011
ecu18

ecu18

Uploaded
Dec 12, 2011
ecu19

ecu19

Uploaded
Dec 12, 2011
ecu20

ecu20

Uploaded
Dec 12, 2011
ecu21

ecu21

Uploaded
Dec 12, 2011
ecu22

ecu22

Uploaded
Dec 12, 2011
ecu23

ecu23

Uploaded
Dec 12, 2011
ecu24

ecu24

Uploaded
Dec 12, 2011

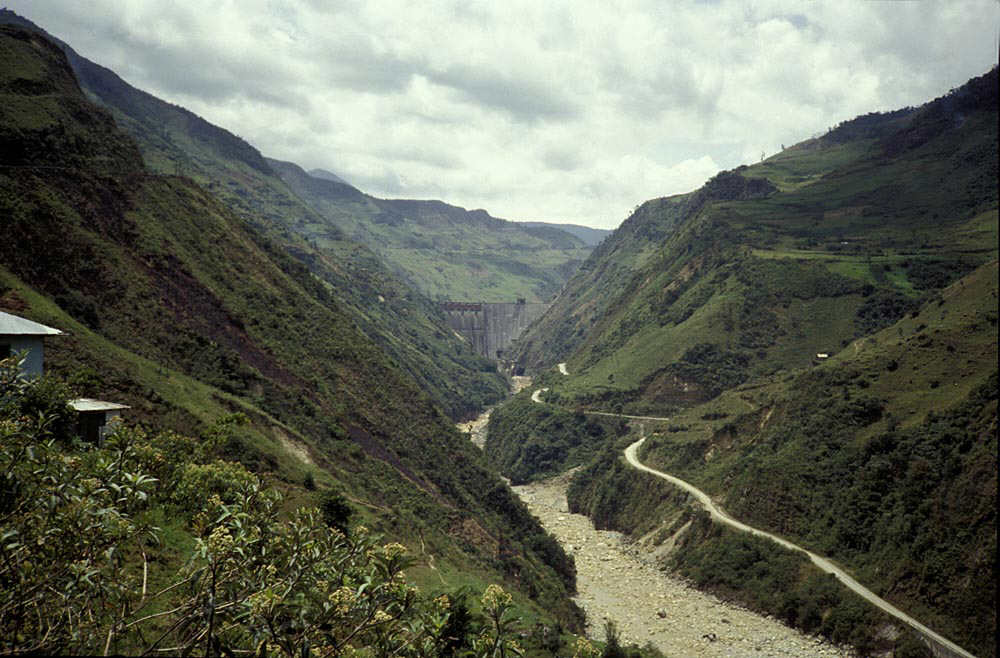

ecu01

ecu01

Uploaded
Dec 12, 2011
ecu02

ecu02

Uploaded
Dec 12, 2011
ecu03

ecu03

Uploaded
Dec 12, 2011

Publications

  • Knight, D.W. and Abril, B., 1996, Refined calibration of a depth-averaged model for turbulent flow in a compound channel, Proc. Instn. of Civil Engineers, Water , Maritime and Energy Division, London, Vol.118, Issue 3, Sept., Paper No. 11017, 151-159. [J]
  • Abril, J.B. and Knight, D.W., 2002, Sediment transport simulation of the Paute river using a depth-averaged flow model, River Flow 2002, Proc. Int. Conf. on Fluvial Hydraulics, Louvain-la-Neuve, Belgium, Sept., Vol. 2, 895-901, Balkema. [C]
  • Abril, J.B. and Knight, D.W., 2004, Stabilising the Paute river in Ecuador, Civil Engineering, Proceedings of the Instn. of Civil Engineers, London, 156, February, 32-38. [J]
  • Knight, D.W., Omran, M. and Abril, J.B., 2004, Boundary conditions between panels in depth-averaged flow models revisited, River Flow 2004, Proc. 2nd Int. Conf. on Fluvial Hydraulics, 23-25 June, Napoli, Italy [Eds M. Greco, A. Carravetta and R.D. Morte], Vol. 1, 371-380. [C]
  • Abril, J.B. and Knight, D.W., 2004, Stage-discharge prediction for rivers in flood applying a depth-averaged model, Journal of Hydraulic Research, IAHR, 42, No. 6, 616-629. [J]
