FCF Phase C (mobile, straight)

This volume contains data on experiments in which the main channel had a mobile bed and the floodplains were either smooth or rough. The experiments were conducted by PhD student Brown, whose details may be found on the PhD data list.

Data include both 'smooth floodplain' and 'rough floodplain'.

Further details on the notation and programme are shown in Notes on FCF data.

Experimental series (1995-1996)

Test
Date 		Target Q
(m^3/s) 		Actual Q
(m^3/s) 		Qmc
(m^3/s) 		Test
layout 		Slope
(x1000) 		Depth,H
(m) 		Data
(Series)
01/04/95 0.050 0.04894 0.04894 inbank 1.76974 0.07076
03/04/96 0.075 0.07454 0.07454 inbank 1.66779 0.09666
03/07/95 0.125 0.12460 0.12460 inbank 1.59132 0.15517
25/03/96 0.175 0.17565 0.17565 bankfull 1.60752 0.19878
20/11/95 0.250 0.24989 0.24989 inbank 1.71015 0.25257
26/03/96 0.300 0.29996 0.29996 inbank 1.63337 0.27859
14/03/96 0.350 0.35028 0.35028 inbank 1.75473 0.30952
20//03/96 0.450 0.44894 0.44894 inbank 1.90536 0.35809
16/07/95 0.250 0.24762 0.2016 rough 1.80007 0.22731 FCF250R
24/07/95 0.350 0.34978 0.2367 rough 1.76931 0.25811 FCF350R
31/07/95 0.450 0.44953 0.2932 rough 1.84666 0.28144 FCF450R
08/08/95 0.600 0.59887 0.3514 rough 1.84332 0.32018 FCF600R
14/04/96 0.250 0.25004 0.1968 smooth 1.48742 0.22493 FCF250S
08/04/96 0.350 0.34754 0.2145 smooth 1.88995 0.23902 FCF350S
15/04/96 0.450 0.44825 0.2303 smooth 1.77866 0.25690 FCF450S
21/08/95 0.600 0.59840 0.2594 smooth 1.84946 0.27835  FCF600S
17/04/96 0.750 0.74800 0.2814 smooth 1.92817 0.29347 FCF750S

Images

Click on the filenames below (the text displayed beneath each thumbnail) to display the revelant image.

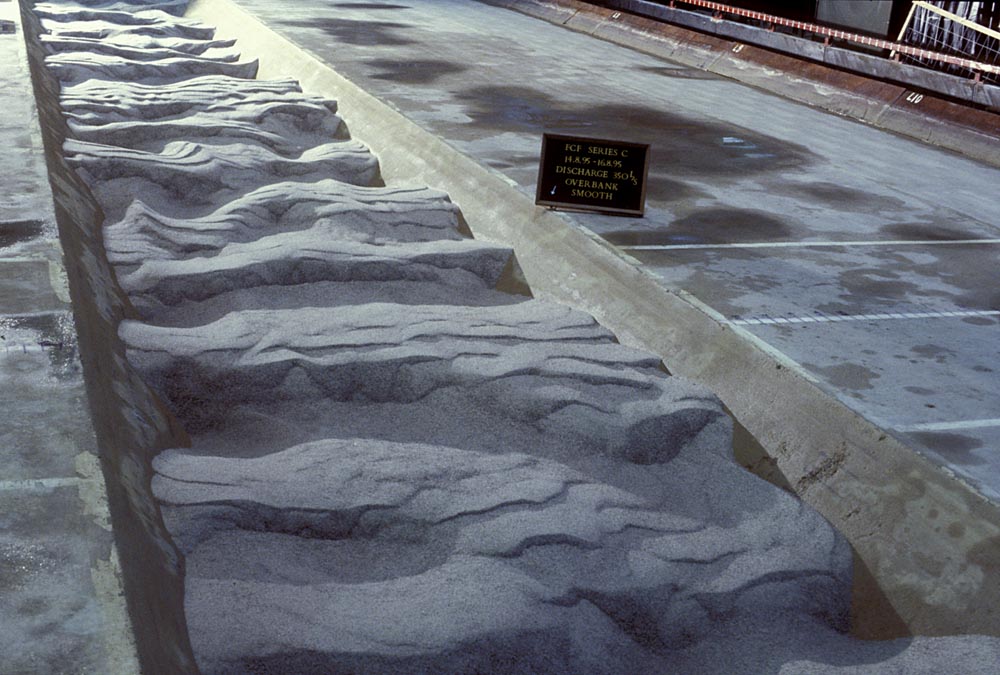

15

15

Uploaded
Dec 22, 2011
16

16

Uploaded
Dec 22, 2011
17

17

Uploaded
Dec 22, 2011
18

18

Uploaded
Dec 22, 2011
19

19

Uploaded
Dec 22, 2011
20

20

Uploaded
Dec 22, 2011
21

21

Uploaded
Dec 22, 2011

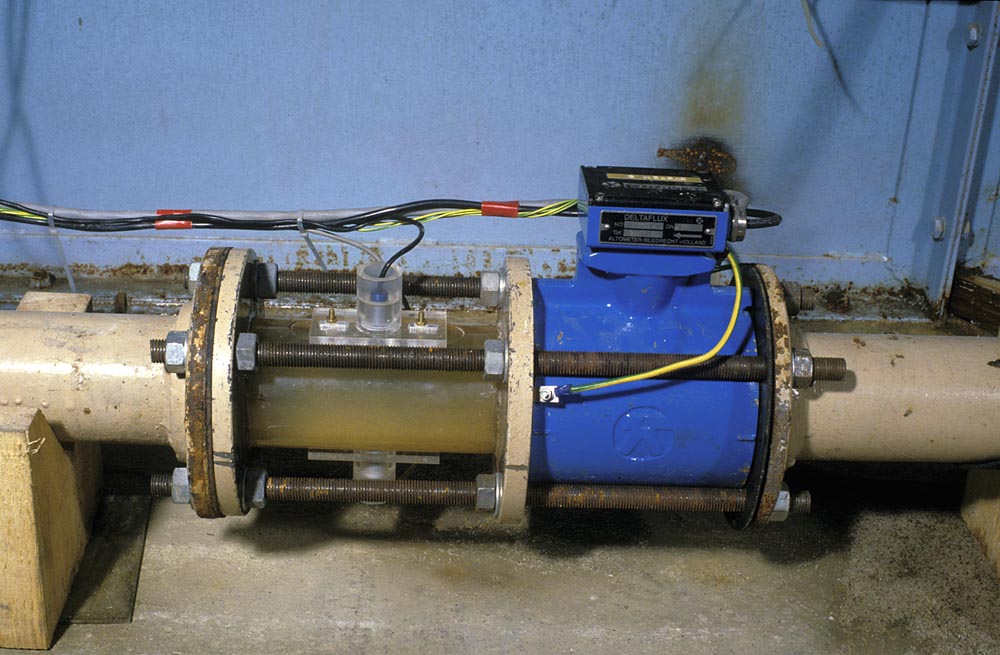

22

22

Uploaded
Dec 22, 2011
23

23

Uploaded
Dec 22, 2011
24

24

Uploaded
Dec 22, 2011

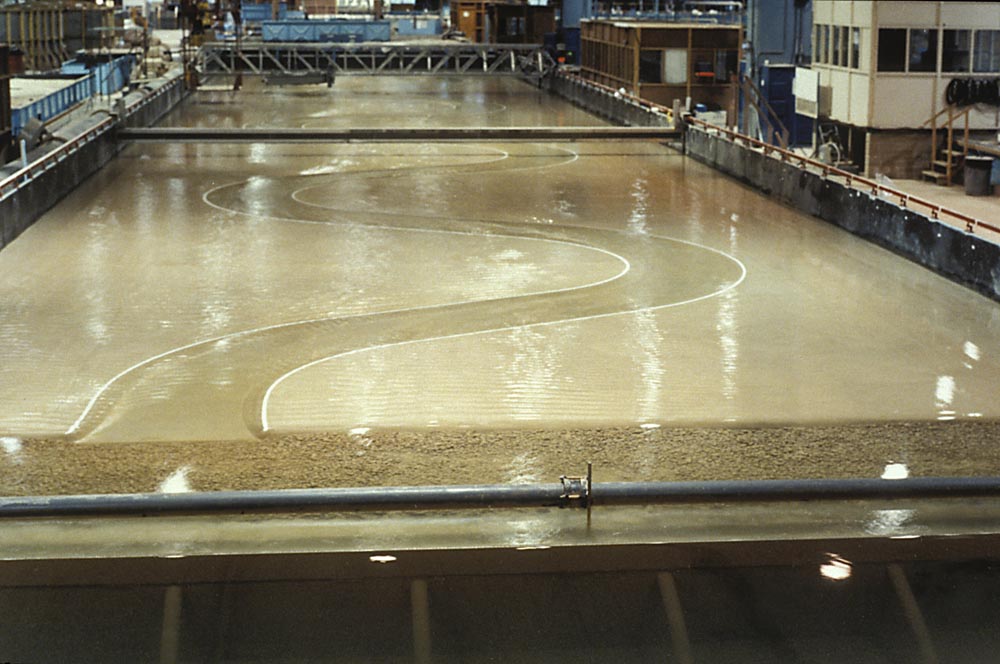

08

08

Uploaded
Dec 22, 2011
09

09

Uploaded
Dec 22, 2011

Experimental data files

Details on the notation and programme are given in Notes on FCF data. Data files are in Microsoft Excel format, which are regrouped and listed in the following manner. All files need to be unzipped using WINZIP and then opened with MS Excel.

General data

  • FCF files 1 (summary data, inbank, overbank with smooth and rough floodplain)
  • FCF files 2 (summary data from both Ulster University and Newcastle University)

Overbank (smooth floodplain)

Overbank (rough floodplain)
