BIFoR FACE Research
What are we measuring?
What are our research findings?

Key results from the first six years of elevated levels of carbon dioxide at BIFoR FACE include:

An increase in plant carbon
An increase in tree nutrient demands
An increase in carbon allocation belowground
A +23% increase in carbon dioxide update
Increased leaf mass
An increase in woody growth
Carbon and nutrient cycling responses to 7 years of eCO2 fumigation by Sami Ullah
Update from the BIFoR-FACE Elevated CO₂ Woodland Experiment by Rob MacKenzie


Research council funded projects underway at BIFoR FACE

The following are examples of research council funded projects underway at BIFoR FACE:

Royal Society International Fellowship (2024-2027) Suffocating trees: investigating whether elevated CO2 can buffer the effects of extreme climatic events in temperate forests, Dr Alice Gauthey

QUINTUS (2018 -2024) - a £3.7m NERC funded large grant project, Quinquennial (half-decadal) carbon and nutrient dynamics in temperate forests: Implications for carbon sequestration in a high carbon dioxide world, led by Prof Rob MacKenzie (University of Birmingham)

FACE Underground (2020 - 2023) - a standard NERC funded project. This project will use the FACE experiment to determine whether mature temperate forests will be able to access more soil nutrients under elevated carbon dioxide (eCO2), led by Dr Sami Ullah (University of Birmingham)

Disentangling mechanisms of co-adaption between trees and soil food webs in response to environmental perturbations (2019 - 2022) - a NERC funded project, led by Prof David Johnson (University of Manchester)

Distributed Real Time Soil (DiRTS) Monitoring (2020 - 2022) a NERC funded project led by Dr Sami Ullah (University of Birmingham).

NI: Network for Monitoring Canopy Temperature of Forests (netCTF) - a 2020 NERC funded project led by Dr Sophie Fauset (University of Plymouth). This project will increase the global network for IR monitoring of forest canopy temperatures (netCTF). As part of that award an instrument will be placed on our 40m flux tower collecting important continuous measurements.

The role of mesophyll CO2 diffusion in modulating the response of photosynthetic carbon uptake to COenrichment of a mature temperate forest (2022 – 2025) a £870,000 NERC funded standard grant, led by Dr Florian Busch (University of Birmingham).

CLEANFOREST EU Cost Action on Joint effects of Climate Extremes and Atmospheric deposition on European FORESTs (2022 to 2026) looking at how different global change drivers affect forest responses and how experimental manipulation experiments (e.g. BIFoR FACE among others) can help in quantifying the response of forests to global change. Prof. Sami Ullah is Co-I on the Cost Action and member of the CLEANFOREST Management Committee.

Royal Society International Exchange (2022-24) Effects of simulated increase in nitrogen deposition on mature deciduous forests in the UK and Italy: above and belowground responses (£12,000). Work now underway at BIFoR and an oak woodland in Italy, led by Prof. Sami Ullah.

MEMBRA (2021 - 2024) Understanding Memory of UK Treescapes for Better Resilience and Adaptation, funded the UKRI Treescapes Program (£1.9 million). Research now underway both at BIFoR-FACE and the Wolfson Advanced Glasshouses among a country-wide sites. Led by Dr Estrella Luna Diez (University of Birmingham) with Dr Marco Catoni, Dr Adriane Esquivel Muelbert, Dr Scott Hayward, and Prof. Rob MacKenzie).

To see our research outputs go to our "Publications & Articles" webpage.

Below we have tried to map research projects into different research themes but as the research is related to whole forest ecosystems, there is naturally overlap between the areas.

To see the University of Birmingham staff and students involved in each of the research areas please go to our “Research Team” webpage.

The information to follow regarding measurements at BIFoR FACE is separated into:

  1. Core measurements - these measurements have been taken continuously over a long period and are made in most cases by the Research Technician staff at the FACE Facility
  2. Project specific measurements - these might have been taken just for a shorter undergraduate/postgraduate research project

    Posters related to research projects are included below, click on the + sign to expand the research area that interests you and see the posters under the heading "Example Projects."

Aboveground vegetation processes

Core measurements

  • Vegetation indices -  Phenocameras
  • Phenology and biodiversity observations, including bryophyte, deadwood surveys

  • Tree stem growth – LIDAR surveys (includes tree height), dendrometers (manual and automated)

  • Tissue samples of green leaves taken from the top/middle/bottom of canopy for oak trees and also tissue samples from the other 3 key species of tree (hazel, hawthorn & sycamore) biobanked for future research
  • Tissue samples of buds & catkins bio banked for future research
  • Leaf Area measurements of green leaves sampled from top/middle/bottom of canopy for the four key species of tree (oak, hazel, hawthorn & sycamore)
  • Leaf litter trap samples - matter is separated into different categories including a 'woody material' archive and 'reproductive output' archive
  • Leaf Area Index – both hemispherical and direct method
  • Each tree is identified and has its own ID number and is mapped.

Projects specific measurements

  • Leaf temperature
  • Leaf-level gas exchange
  • Tree stem respiration
  • Canopy spread
  • Tree stem xylem sap flux
  • Stem wood characteristics from core and slice samples
  • Physiological performance in naturally regenerated trees
  • Carbon isotope analysis of tree cores
  • Sulphur measurements from tree discs
  • Poplar seedlings under elevated CO2
  • Wood compositional analysis
  • Dry and wet deposition fluxes
  • Sub-canopy Photosynthetically Active Radiation (PAR)
  • Imaging of leaves from leaf litter traps for leaf area
  • Acorn collection and some hazel nuts

Examples of research projects

Belowground vegetation, litter and soil processes

Core measurements

  • Fine Root development
  • Soil CO2, H20 and CH4 fluxes
  • N mineralization and N2O source partitioning
  • Soil sampling and lab analysis for nutrients (cations, anions), particle size distribution at least three times a year
  • pH, soil type, organic matter content, CEC, bulk density
  • Leaf litter
  • Hyphal growth and turnover

Project specific measurements

  • CH4 and N20
  • Leaf litter decomposition
  • Fine root production and chemistry:
  • Hyphal growth and turnover
  • Root and hyphal control over decomposition rates, microbial functional activity and nutrient availability
  • Production and turnover of extra-radical mycelium of symbiotic mycorrhizal fungi
  • Dissolved Organic Matter (DOM).

Examples of research projects

QUINTUS - Quinquennial (half-decadal) carbon and nutrient dynamics in temperate forests: Implications for carbon sequestration in a high carbon dioxide world


Manchester project with PI Prof D Johnson

FACE Underground will use the FACE experiment to determine whether mature temperate forests will be able to access more soil nutrients under elevated carbon dioxide (eCO2)

Atmospheric exchanges of CO2, CH4 and N2O of temperate forests soils under eCO2 at BIFoR FACE - by Alex Armstrong Poster 2023

Effect of elevated CO2 and soil nitrogen availability on plant C allocation and soil C turnover from a whole-plant mesocosm experiment - by Hye in Yang.

Nitrogen cycling in forest soils under elevated CO2 : response of a key soil nutrient to global change - by Manon Rumeau Poster 2023

Deciduous Woodlands under eCO2 and Nitrogen Deposition: Biogeochemical tradeoffs and the fate of soil carbon Poster 2022


Soil Bioavailable Nitrogen at BIFoR FACE, by PhD student Angeliki Kourmouli. Poster 2019

Thumbnail Katy Faulkner

Resistance and resilience of forest soil microbial communities to extreme weather events
in a high CO2 world - University of Warwick, Katy Faulkner Poster 2021

Does wood grown under elevated CO2 decompose at a different pace than wood grown under ambient conditions? - ETH Zurich Prof Tom Crowther

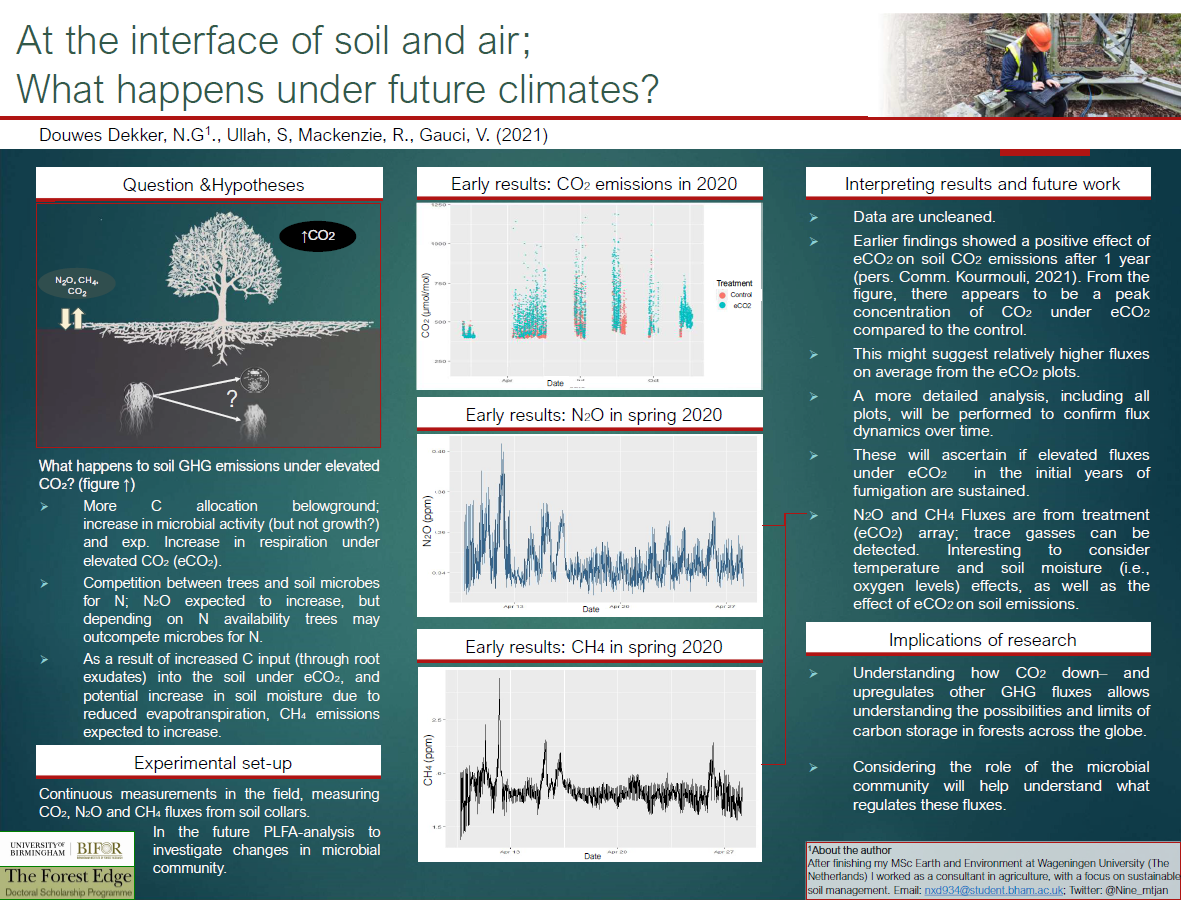

Thumbnail Nine Douwes Dekker

At the interface of soil and air: What happens under future climate?  - by Nine Douwes-Dekker. Poster 2022

Clare Ziegler thumbnailGetting to the root of the problem - PhD student Clare Ziegler, Dr Iain Johnston and Dr Rosemary Dyson. Poster 2019.

Disentangling mechanisms of co-adaption between trees and soil food webs in response to environmental perturbations. A University of Manchester led project - Prof D Johnson



Animals (especially invertebrates)


Core Measurements

Camera traps are installed through the woodland - take a look at some images in our "Gallery"

Project specific measurements

  • Invertebrate sampling including the following trapping:
            Malaise, pitfall, pan, funnel, beating (canopy, field layers), Robinson trap
  • Image analysis of green leaves and senesced leaves for herbivory
  • Leaf mines
  • Winter active lepidoptera specific study
  • Saproxylic activity and wood decay

Example Projects

Liam CrowleyMines bigger than yours - PhD student Liam Crowley. Poster 2021

liam Crowley talk 2019 thumbnailInvestigating the effects of elevated carbon dioxide on forest arthropods  - PhD student Liam Crowley. Presentation 2019.

Listen to Dr Scott Hayward's 2021 talk from our Annual Meeting.


Aradhana Roberts ThumbnailA collaborative project with the University of Lund

Assessing the functional contribution of saproxylic invertebrates to wood decay and carbon cycling under changing C02 conditions. - University of Leicester led project by Dr Moya Burns, a long term study commenced in 2019.

Forest Hydrology


FACE arrays core measurements

  • Throughfall precipitation (ground level)
  • Groundwater levels
  • Field precipitation (ground level)
  • Soil moisture
  • Soil pore water

FACE arrays project specific measurements

  • Tree stem xylem sap flux
  • Isotopic composition of branches
  • Soil water isotopic composition
  • Soil pore water samples
  • Soil temperature profile
  • Leaf water potential
  • Leaf transpiration and water vapour exchange

Across site project specific measurements

  • ·         Resarzurin-resorufin(Raz/Rru)
  • ·         Dissolved Oxygen
  • ·         Conductivity Temperature and Depth (CTD)
  • ·         Stream Stage
  • ·         pH/electrical conductivity/dissolved oxygen/turbidity/temp/chromophoric dissolved organic matter/Tryptophan
  • ·         NO3, NO2, Chemical Oxygen Demand (COD),  Total Organic Carbon (TOC)
  • ·         Stream pore water samples
  • ·         Stream surface water samples
  • ·         Precipitation
  • ·         Air pressure


Microbial Processes & Biomarkers


Project specific measurements

  • soil fungal metagenomics
  • macrofungi surveys
  • n-alkanes

Example projects

Aileen Baird presentationFungi of the future - PhD student Aileen Baird. Presentation 2020

Thumbnail AIleen Baird

Bioeaorsoals at BIFoR FACE - PhD student Aileen Baird. Poster 2021

Thumbnail Bridget Warren

Leaf waxes: tracking past climate and plant metabolism - PhD student Bridget Warren. Poster 2021

Listen to Bridget talk about her research

Bridget Warren


Thumbnail Sophie Mills

Future climate: Future pollen and spores by Sophie Mills. Poster 2021

Plant health and plant diseases

Visit our Forest Health Research page for further information.

Some example projects follow:


Vegetation and Land Surface Modelling

This team is expanding, check back soon for some updates. We welcome Dr Liling Chang, Dr Anna Gardner and Shomari Healey.

If you have an idea for research at the BIFoR FACE facility, we'd really like to hear from you, we've a team of people willing to talk to any future collaborators, please do 'contact us' if you would like an initial conversation or if you have an idea developed already you can complete a short form to start the process.

Everyone completing research at BIFoR FACE needs to read & agree to the BIFoR FACE Intellectual Property and Data Protocol in advance of starting research.  In summary the maximum scientific exploitation of BIFoR FACE depends on the collaborative utilisation of all data collected at BIFoR FACE for research. The BIFoR FACE science community believe and advocate transparency in science assured through open data after an agreed period of privileged use. All data acquired through BIFoR FACE projects will be deposited in a shared database in good time and with appropriate accompanying metadata after consultation with the BIFoR Data Manager. A scientist sharing data does not relinquish ownership of that data but recognises that all BIFoR FACE data will become open data, with due care taken to record data provenance, in a timely manner in order to ensure transparency, to be compatible with the requirements of funding agencies, and to accelerate scientific advance.

Inside a FACE array - Dr Rick Thomas and Anna Gardner describe some of the experiments

Research here

Add your own research experiment /how to use BIFoR FACE data already gathered  "Research here
